Manufacturer

Aten

Categories

Aten Electronics

MPN

ATNCS1734B

Model#

CS1734B

UPC Code

672792112256

UNSPSC Code

2

Information

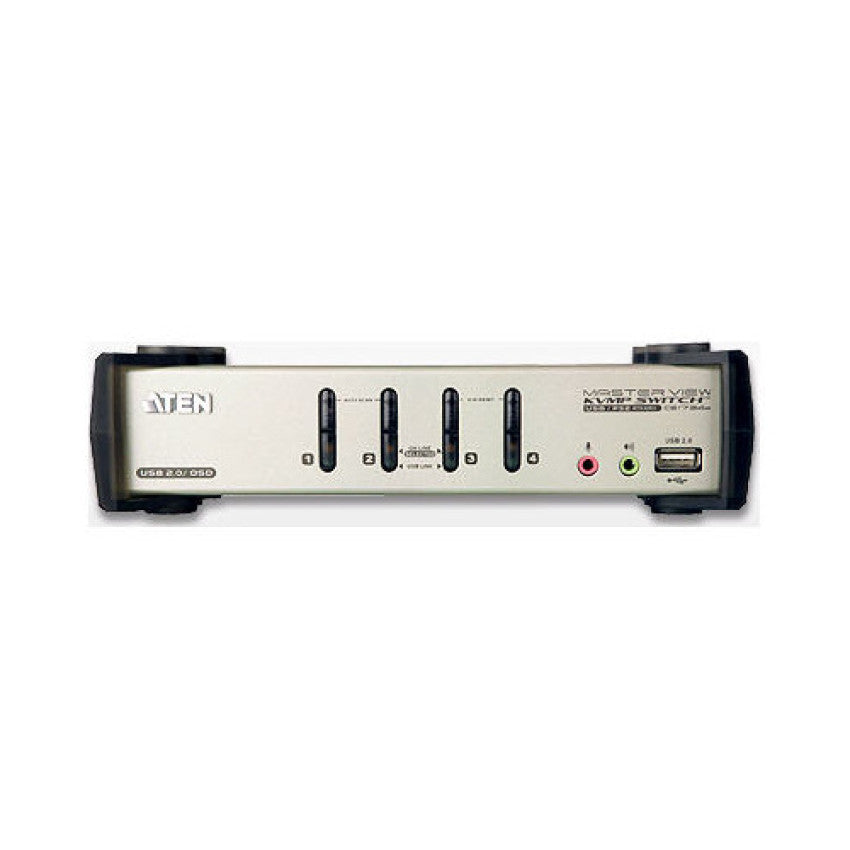

Device Type: KVM Switch
Form Factor: External
Networking / Ports Qty: 4
Connections: 1 x USB Type A Female;
1 x HDB-15 Female;
1 x USB Type A Female ;
2 x Mini Stereo Jack Female ;
4 x Mini Stereo Jack Female
Interfaces: Console Ports 2 x USB Type A Female (Black)
1 x HDB-15 Female (Blue)
2 x 3.5mm Audio Jack Female (Green)
2 x 3.5mm Audio Jack Female (Pink)
KVM Ports 4 x SPHD-15 Female (Yellow)
4 x 3.5mm Audio Jack Female (Green)
4 x 3.5mm Audio Jack Female (Pink)
Firmware Upgrade 1 x 4-conductor 3.5mm Jack (Black)
Power 1 x DC Jack
USB Hub 2 x USB Type A Female (White)
Max Resolution (external): 2048 x 1536 @ 60Hz; DDC2B
Width: 8.27 Inch
Depth: 3.46 Inch
Height: 2.19 Inch
PC Compatibility: PC; Mac; Sun
Service & Support Type: 3 years warranty
Features: One console controls four computers and two additional USB devices 2-port USB 2.0 hub built in ;
Dual interface - supports computers with PS/2 or USB keyboard and mouse configurations ;
Independent switching of KVM, USB, and audio focus
RoHS: Y
COO: CHINA

Unit of Measure

Item Weight

4.5

Ships via UPS

Y

GTIN Item

672792112256

UPC Retail

672792112256

Brand

Aten

Manufacturer Stock No.

CS1734B
