Manufacturer

Black Box

Categories

Black Box Electronics

MPN

BBNKVXLCHDP200

Model#

KVXLCHDP200

UPC Code

822088148142

UNSPSC Code

2

Information

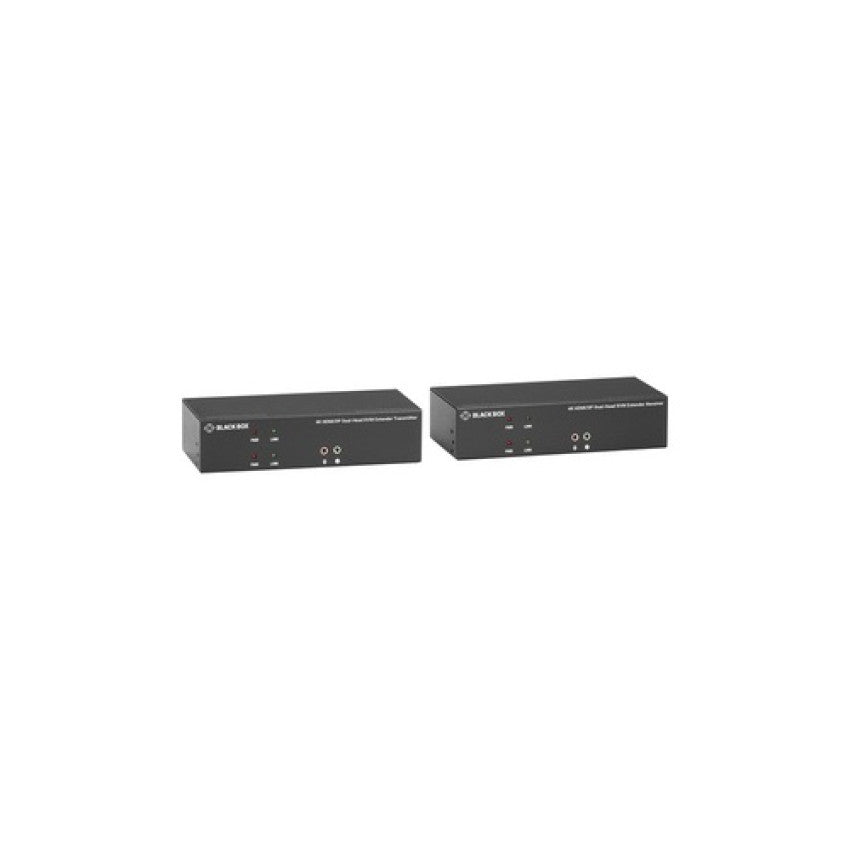

Device Type: KVM Extender
Networking / Ports Qty: 9
Connections: Video Input: (1) HDMI female
Serial Control Port: (1) DB9 female
Link Port: (1) RJ-45 female
USB: (1) USB Type B female
Audio: (1) Line in, (1) Line out;
Local Video Output: (1) HDMI female
Video Output: (1) HDMI female
Serial Control Port: (1) DB9 male
Link Port: (1) RJ-45 female
USB 2.0: (4) USB Type A female
Audio: (1) Mic In, (1) Speaker Ou
Width: 7.09 Inch
Depth: 3.27 Inch
Height: 0.83 Inch
Service & Support Type: 2 Year Double Diamond Warranty (Standard)
What's Included: (1) Transmitter
(1) Receiver
(2) 5V, 2A Power Supplies (includes US, EU, UK plug types)
(2) HDMI cables 1.2m (4 ft.)
(2) DisplayPort cables 1.2m (4 ft.)
(1) 3.5mm audio cable 1.8m (6 ft.)
(1) USB-B to USB-A cable 1.8m (6 ft.)
(2) Deskmounting brackets (with screws)
Features: - DisplayPort or HDMI Dual Head transmission up to 100m over standard CATx cable
- Local and remote units connect at distances of up to 330 feet (100m) using two CAT5e cables
- Supports DisplayPort and HDMI video resolution up to 3840x2160 at 30Hz
- Transparent USB 2.0 extension supports HID devices, mass storage devices
- Supports RS-232 peripheral (serial) devices
- Bi-directional audio via speaker/mic connection
- Local video port loopback for monitoring on transmitter (TX) unit
COO: TAIWAN / TAIWAN

Unit of Measure

Item Weight

4.2

Ships via UPS

Y

GTIN Item

822088148142

UPC Retail

822088148142

Brand

Black Box

Manufacturer Stock No.

KVXLCHDP-200
