Manufacturer

Black Box

Categories

Black Box Electronics

MPN

BBNKVXLCHDPF200

Model#

KVXLCHDPF200

UPC Code

822088148159

UNSPSC Code

2

Information

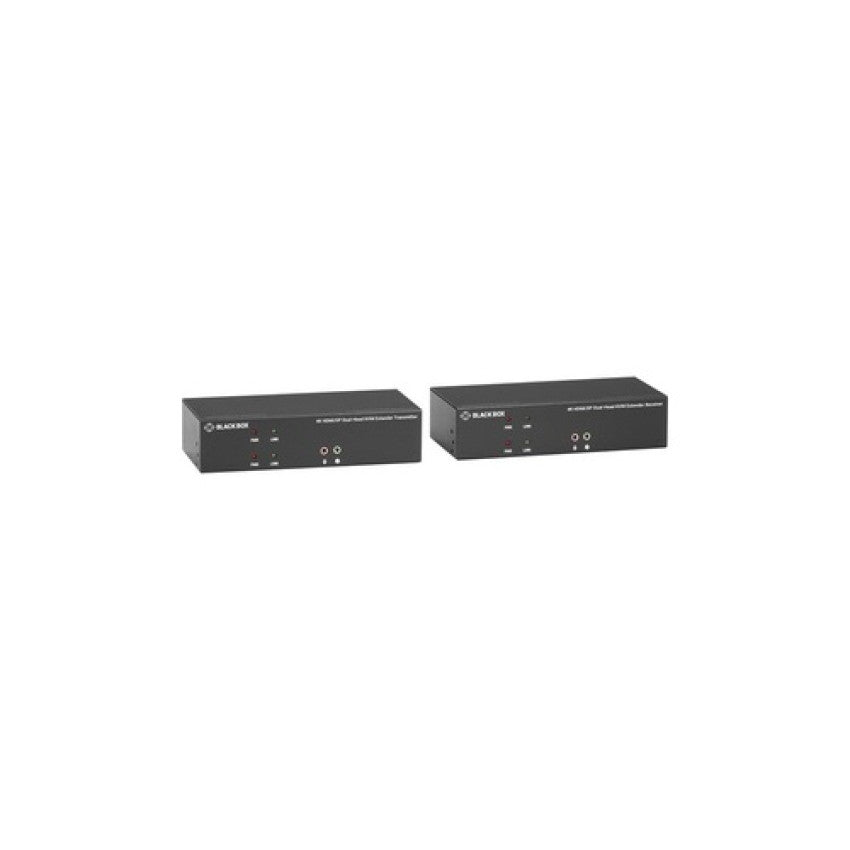

Device Type: KVM Extender
Networking / Ports Qty: 9
Connections: Video Input: (1) HDMI female
Serial Control Port: (1) DB9 female
Link Port: (1) RJ-45 female
USB: (1) USB Type B female
Audio: (1) Line in, (1) Line out;
Local Video Output: (1) HDMI female

Console connection:
Video Output: (1) HDMI female
Serial Control Port: (1) DB9 male
Link Port: (1) RJ-45 female
USB 2.0: (4) USB Type A female
Audio: (1) Mic In, (1) Speaker Out
Width: 7.09 Inch
Depth: 3.27 Inch
Height: 0.83 Inch
Service & Support Type: 2 Year Double Diamond Warranty (Standard)
What's Included: (1) Transmitter
(1) Receiver
(2) 5V, 2A Power Supplies (includes US, EU, UK plug types)
(2) HDMI cables 1.2m (4 ft.)
(2) DisplayPort cables 1.2m (4 ft.)
(1) 3.5mm audio cable 1.8m (6 ft.)
(1) USB-B to USB-A cable 1.8m (6 ft.)
(2) Deskmounting brackets (with screws)
Features: - DisplayPort or HDMI Dual Head 4K transmission up to 30 km over singlemode cable
- Local and remote units connect at distances of up to 10 km using SFP below 1250 Mbps
- Supports DisplayPort and HDMI video resolution up to 3840x2160 at 30Hz
- Transparent USB 2.0 extension supports HID devices, mass storage devices
- Supports RS-232 peripheral (serial) devices
- Bi-directional audio via speaker/mic connection
- Local video port loopback for monitoring on transmitter (TX) unit
COO: TAIWAN / TAIWAN

Unit of Measure

Item Weight

4.25

Ships via UPS

Y

GTIN Item

822088148159

UPC Retail

822088148159

Brand

Black Box

Manufacturer Stock No.

KVXLCHDPF-200
