Manufacturer

Cisco

Categories

Cisco Electronics

MPN

CSCC9200L24T4GE

Model#

C9200L24T4GE

UPC Code

889728170123

UNSPSC Code

2

Information

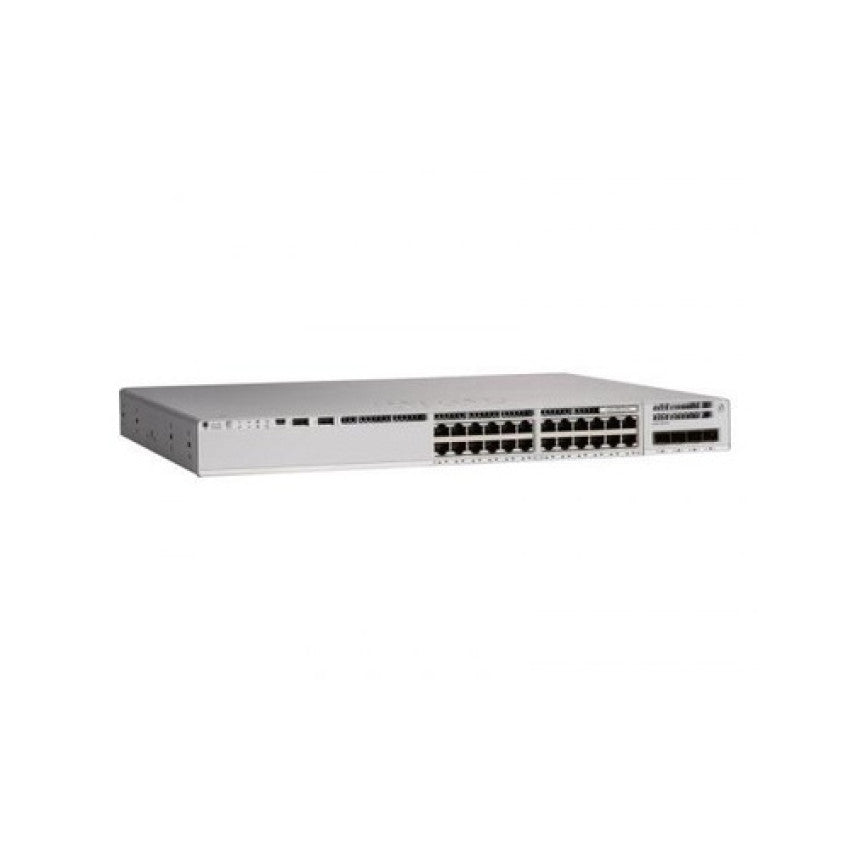

Product Description: Cisco Catalyst 9200L - Network Essentials - switch - 24 ports - rack-mountable
Device Type: Switch - 24 ports - L3 - stackable
Enclosure Type: Rack-mountable
Subtype: Gigabit Ethernet
Ports: 24 x 10/100/1000 + 4 x Gigabit SFP (uplink)
Performance: Stacking bandwidth: 80 Gbps  ¦ Switching capacity: 56 Gbps  ¦ Forwarding rate: 83.33 Mpps
Capacity: Virtual networks: 1 Â ¦ IPv4 routes: 11000 Â ¦ IPv4 routing table entries: 3000 Â ¦ IPv6 routing table entries: 1500 Â ¦ Multicast scale: 1000 Â ¦ ACL scale entries: 1500 Â ¦ FNF entries: 16000 Â ¦ VLANs supported: 1024 Â ¦ Switched virtual interfaces (SVIs): 512 Â ¦ QoS hardware queues per port: 8
MAC Address Table Size: 16000 entries
Jumbo Frame Support: 9198 bytes
Routing Protocol: OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Features: QoS, Cisco StackWise Technology, Rapid PVST+, SRR, PXE support, RSPAN, NetFlow, Energy Efficient Ethernet, MIB, CoS, FNF, 802.1x authentication, DSCP support, MACsec support, 6MB packet buffer, CoPP, SPAN, EEM, PIM, FHS, PVLAN support, CIR
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Power: AC 100-240 V (50 - 60 Hz)
Power Redundancy: Optional
Dimensions (WxDxH): 17.5 in x 11.3 in x 1.7 in
Weight: 9.59 lbs
Manufacturer Warranty: Limited lifetime warranty
Device Type: Switch - 24 ports - L3 - stackable
Enclosure Type: Rack-mountable
Subtype: Gigabit Ethernet
Ports: 24 x 10/100/1000 + 4 x Gigabit SFP (uplink)
Performance: Stacking bandwidth: 80 Gbps  ¦ Switching capacity: 56 Gbps  ¦ Forwarding rate: 83.33 Mpps
Capacity: Virtual networks: 1 Â ¦ IPv4 routes: 11000 Â ¦ IPv4 routing table entries: 3000 Â ¦ IPv6 routing table entries: 1500 Â ¦ Multicast scale: 1000 Â ¦ ACL scale entries: 1500 Â ¦ FNF entries: 16000 Â ¦ VLANs supported: 1024 Â ¦ Switched virtual interfaces (SVIs): 512 Â ¦ QoS hardware queues per port: 8
MAC Address Table Size: 16000 entries
Jumbo Frame Support: 9198 bytes
Routing Protocol: OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Features: QoS, Cisco StackWise Technology, Rapid PVST+, SRR, PXE support, RSPAN, NetFlow, Energy Efficient Ethernet, MIB, CoS, FNF, 802.1x authentication, DSCP support, MACsec support, 6MB packet buffer, CoPP, SPAN, EEM, PIM, FHS, PVLAN support, CIR
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
RAM: 2 GB
Flash Memory: 4 GB
Interfaces: 24 x 1000Base-T RJ-45  ¦ 4 x 1000Base-X SFP uplink  ¦ 1 x network stack device  ¦ 1 x management (LAN) RJ-45  ¦ 1 x console RJ-45
Power Device: Internal power supply - hot-plug
Max Supported Qty: 2
Power Redundancy: Optional
Voltage Required: AC 100-240 V (50 - 60 Hz)
MTBF: 531,030 hours
Compliant Standards: CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35
Width: 17.5 in
Depth: 11.3 in
Height: 1.7 in
Weight: 9.59 lbs
Service & Support: Limited warranty - advance parts replacement - lifetime - response time: next business day
Humidity Range Operating: 5 - 90% (non-condensing)
Min Storage Temperature: -40 Â °F
Max Storage Temperature: 158 Â °F
Humidity Range Storage: 5 - 90% (non-condensing)
COO: BRAZIL / BRAZIL / CHINA / CHINA / MALAYSIA / MALAYSIA / BRAZIL / CHINA / MALAYSIA / BRAZIL / CHINA / MALAYSIA
TAA compliance: No

Unit of Measure

Item Weight

15.55

Ships via UPS

Y

GTIN Item

889728170123

UPC Retail

889728170123

Brand

Cisco

Manufacturer Stock No.

C9200L-24T-4G-E
