Manufacturer

Tripp Lite

Categories

Tripp Lite Janitorial Supplies, Tripp Lite Batteries & Electrical Supplies, Tripp Lite Surge Protectors

MPN

TRPBC600R

Model#

BC600R

UPC Code

037332282071

UNSPSC Code

1

Application/Usage

POS, Network, Retail, Kiosk, Industrial, Food Service, Home Network, Wireless Access Point, Desktop, Computer Peripheral, Home/Office, Hospital

Backup/Run Time (Full Load)

1.50 Minute

Battery Chemistry

Lead Acid

Cord Length

5 ft

Depth

7.1"

Energy Star

Yes

Environmentally Friendly

Yes

Features

Audible Alarm, Cold Start Function, Green Energy Saving

Form Factor

Desktop/Surface/Wall Mountable

Height

2.3"

Input Current

5 A

Input Frequency

60 Hz

Input Voltage

120 V AC

Limited Warranty

2 Year

Load Capacity (VA)

600 VA

Load Capacity (Watt)

300 W

Manufacturer

Tripp Lite by Eaton

Manufacturer Part Number

BC600R

Manufacturer Website Address

https://tripplite.eaton.com/

Output Voltage

120 V AC

Package Contents

• BC600R 600VA Desktop/Surface/Wall Mountable UPS
• 4 x M4 x 12 mm Screws
• 4 x M4 x 20 mm Screws
• Quick Start Guide

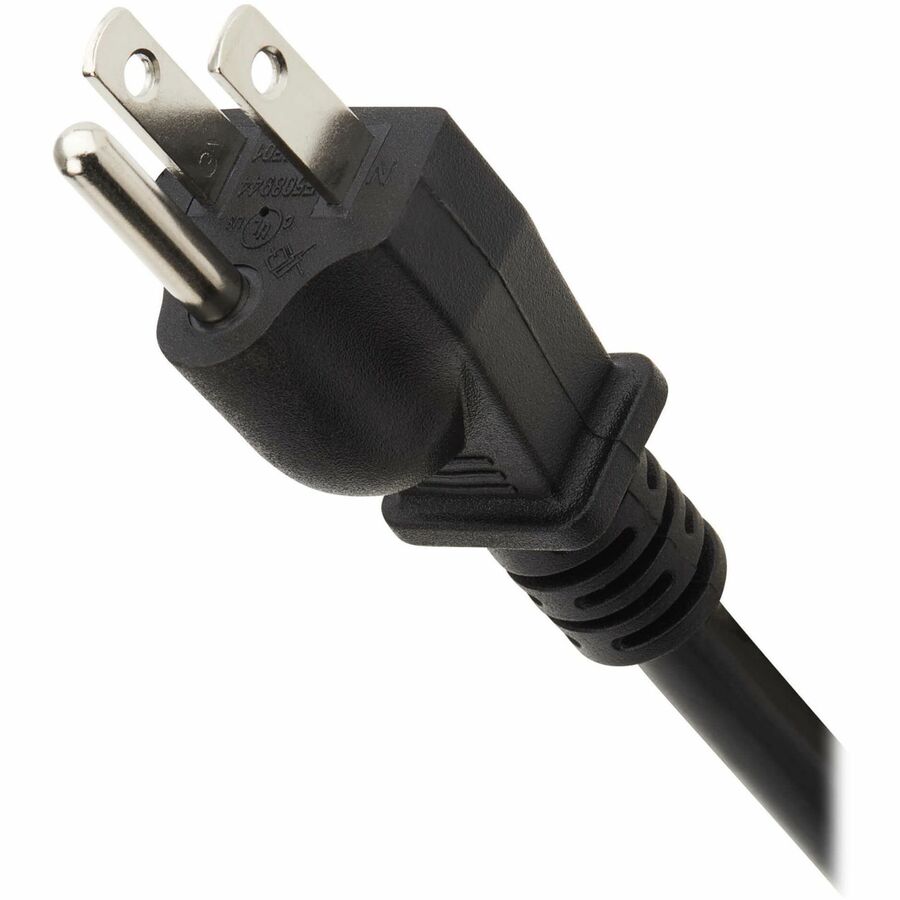

Plug/Connector Type

NEMA 5-15P

Product Model

BC600R

Product Type

Standby UPS

Receptacle Type

NEMA 5-15R

Sound Emission

40 dB

Status Indicators

LED Indicators:

• Low Battery or Fault Condition
• Power and Line/battery Mode Status

Surge Energy Rating

190 J

Weight (Approximate)

4.41 lb

Width

10"

Typical Battery Recharge Time

8 Hour

Transfer Time

10 ms

Waveform Type

Pulse-width Modulated Sine Wave

Brand Name

Tripp Lite by Eaton

Marketing Information

600VA battery backup for PCs and retail point-of-sale application is a standby UPS that provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise. 300-watt, 120-volt UPS protects home/office computing, networking and point-of-sale equipment in retail, kiosks, foodservice and light industrial environments. It's easy to set up in minutes. Just plug it into a properly grounded wall outlet. Press the power button and connect equipment to the UPS outlets. Input power cable, power button and status LEDs are on the same side for easy access. UPS switches to battery power to keep connected equipment running during short blackouts and brownouts, giving you enough time to save data and complete a safe shutdown in case of a longer outage. Incoming utility power keeps the replaceable VRLA battery fully charged so backup power is always available. It restarts automatically once power is restored.

Product Name

BC600R 600VA Desktop/Surface/Wall Mountable UPS

Maximum Operating Temperature

122°F (50°C)

Minimum Operating Temperature

32°F (0°C)

Receptacle Detail

4 x NEMA 5-15R

Backup/Run Time (Half Load)

5 Minute

Battery Characteristics

Valve-regulated

Circuit Breaker

Yes

Number of Battery & Surge Outlets

4

Phase

Single Phase

Replaceable Battery

Yes

Environmental Compliance

Restriction of Hazardous Substances (RoHS)

EMI/RFI Noise Filter

Yes

Output Frequency

60 Hz

DC System Voltage

12 V DC

Maximum Operating Elevation

6561.68 ft

Storage Temperature

5°F (-15°C) - 122°F (50°C)

Output Power Factor

0.5

Efficiency Detail

97% (AC Mode)

Assembly Required

No assembly is required

Contains Recycled Materials

N

Returnable

No

Manufacturer Warranty

Y

Unit of Measure

EA

Item Weight

4.9

Ships via UPS

Y

This item is sold by the

EA

GTIN Item

037332282071

UPC Retail

037332282071

Brand

Tripp Lite

Brand Contact

773-869-1234

Manufacturer Stock No.

BC600R

Country of Origin

VN

UNSPSC Number

39121011

Warranty

Limited Warranty: 2 Year
