Manufacturer

Tripp Lite

Categories

Tripp Lite Janitorial Supplies, Tripp Lite Batteries & Electrical Supplies, Tripp Lite Surge Protectors

MPN

TRPBC850RNC

Model#

BC850RNC

UPC Code

037332283511

UNSPSC Code

1

Application/Usage

Computer, POS, Home, Office, Retail, Kiosk, Food Service, Light Industrial Application, Computer Peripheral

Backup/Run Time (Full Load)

1.70 Minute

Battery Chemistry

Lead Acid

Cord Length

5 ft

Depth

7.1"

Energy Star

Yes

Environmentally Friendly

Yes

Features

Audible Alarm, Cold Start Function, Green Energy Saving

Form Factor

Desktop/Surface/Wall Mountable

Height

3.2"

Input Current

7.10 A

Input Frequency

50 Hz, 60 Hz

Input Voltage

120 V AC

Limited Warranty

3 Year

Load Capacity (VA)

850 VA

Load Capacity (Watt)

450 W

Manufacturer

Tripp Lite by Eaton

Manufacturer Part Number

BC850RNC

Manufacturer Website Address

https://tripplite.eaton.com/

Network (RJ-45)

Yes

Output Voltage

120 V AC

Package Contents

• BC850RNC 850VA Desktop/Surface/Wall Mountable UPS
• 4 x M4 x 12 mm Screws
• 4 x M4 x 20 mm Screws
• Quick Start Guide

Plug/Connector Type

NEMA 5-15P

Product Model

BC850RNC

Product Type

Standby UPS

Receptacle Type

NEMA 5-15R

Status Indicators

LEDs Indicators:

• Low Battery
• Fault
• Power
• Line/Battery Mode

Surge Energy Rating

190 J

USB

Yes

Weight (Approximate)

7.05 lb

Width

11"

Typical Battery Recharge Time

8 Hour

Transfer Time

6 ms

Waveform Type

Pulse-width Modulated Sine Wave

Brand Name

Tripp Lite by Eaton

Marketing Information

Features | 850VA/450W/120V Battery Backup for PCs and Retail Point-of-Sale Applications

The BC850RNC standby UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise for home/office computing, networking and point-of-sale equipment in retail, kiosks, food service and light industrial environments. It's easy to set up in minutes. Just plug the BC850RNC into a properly grounded wall outlet, press the power button and connect equipment to the UPS outlets. For easy access, the input power cable, Ethernet port, AC outlets, power button and status LEDs are all on the same side.

Easy-to-Use Cloud-Enabled Remote Monitoring Powered by Brightlayer

Eaton's cloud-based remote monitoring dashboard offers convenient setup, control and management of a single UPS or a larger deployment. Receive alerts, push configurations, silence alarms or control outlet banks using a mobile app (scan the QR code on the UPS to download it) or web browser. Being able to monitor and access an army of UPS systems from a remote location helps reduce the number of site visits, saving you time and money. The unit's NFC (Near-Field Communication) area lets you transfer custom network settings instantly from your mobile device.

Allows Time to Back Up Critical Files During a Blackout

During short blackouts and brownouts, the BC850RNC switches to battery power to keep connected equipment running. This allows you enough time to save data and complete a safe shutdown in case of a longer outage. Incoming utility power keeps the user-replaceable VRLA battery fully charged, so backup power is always available. The BC850RNC restarts automatically once power is restored, regardless of battery charge level, saving you a costly site visit.

Premium Protection from Surges and Line Noise Helps Your Equipment Perform Better

Rated for 190 joules of surge suppression, the BC850RNC and its five NEMA 5-15R outlets protect connected devices from the harmful effects of power surges. The BC850RNC also filters out disruptive electromagnetic interference (EMI) and radio frequency interference (RFI) that can destroy data and contribute to lengthy downtime.

Easy Preventative Maintenance and Initial Troubleshooting

The BC850RNC's self-test capability and user-replaceable internal battery can extend the life of the UPS and minimize disruption to operations. A resettable circuit breaker helps prevent dangerous system overloads.

Audible Alarm and Diagnostic LEDs Keep You Informed 24/7

An audible alarm and a red LED indicate a low battery or fault condition. A green LED indicates power and line/battery mode status.

Hardened Housing Compatible with Versatile Deployment Options

The low-profile housing allows use in locations with uncontrolled temperature or humidity (operating temperature range: 32° to 122° F / 0° to 50° C). The BC850RNC's small size is suitable for desktop or floor placement. Secure mounting points on the bottom enable horizontal or vertical mounting and are spaced in a 100 x 100 mm VESA pattern for mounting to the back of a monitor with the included hardware. Attachment points allow installation on a shelf or beam with user-supplied cable ties. The five-foot power cord with NEMA 5-15P plug connects to any compatible AC outlet.

Product Name

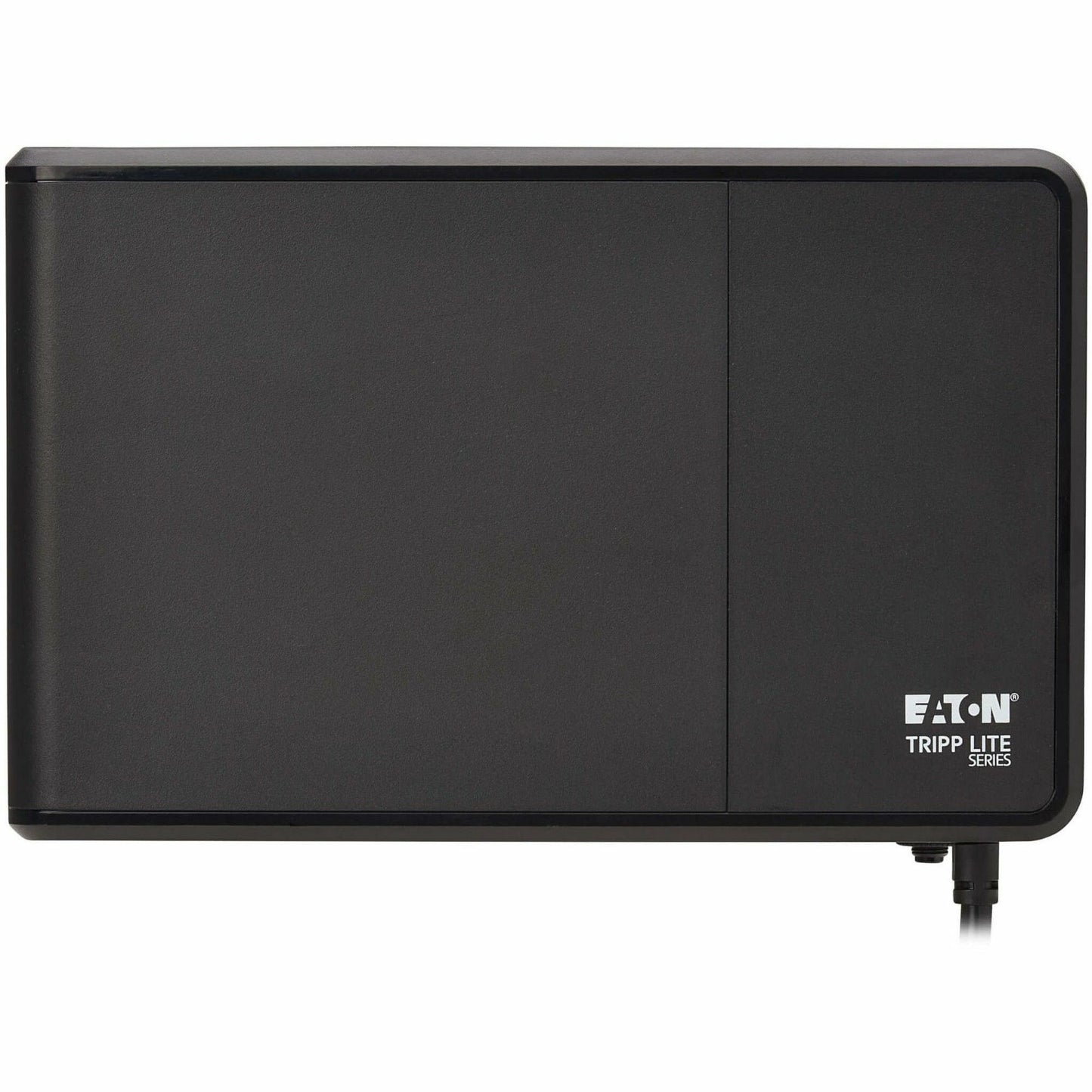

BC850RNC 850VA Desktop/Surface/Wall Mountable UPS

Maximum Operating Temperature

122°F (50°C)

Minimum Operating Temperature

32°F (0°C)

Receptacle Detail

5 x NEMA 5-15R

Backup/Run Time (Half Load)

8 Minute

Battery Characteristics

Valve-regulated

Circuit Breaker

Yes

Network Management

Network Card

Number of Battery & Surge Outlets

5

Phase

Single Phase

Replaceable Battery

Yes

Alarm

Battery Mode, Low Battery, Fault

Sound Emission (A-Weighted)

40 dB(A)

Environmental Compliance

Restriction of Hazardous Substances (RoHS)

EMI/RFI Noise Filter

Yes

Output Frequency

50 Hz, 60 Hz

DC System Voltage

12 V DC

Maximum Operating Elevation

6562 ft

Storage Temperature

23°F (-5°C) - 122°F (50°C)

Overload Protection

Yes

Output Power Factor

0.53

Efficiency Detail

97% (AC Mode)

Surge Suppression

Yes

Assembly Required

No assembly is required

Contains Recycled Materials

N

Returnable

No

Manufacturer Warranty

Y

Unit of Measure

EA

Item Weight

7.9

Ships via UPS

Y

This item is sold by the

EA

GTIN Item

037332283511

UPC Retail

037332283511

Brand

Tripp Lite

Brand Contact

773-869-1234

Manufacturer Stock No.

BC850RNC

Country of Origin

VN

UNSPSC Number

39121011

Warranty

Limited Warranty: 3 Year
