Manufacturer

Fortinet

Categories

Fortinet Electronics

MPN

FTNFS424EPOE

Model#

FS424EPOE

UNSPSC Code

2

Information

Network Device Type: Switch

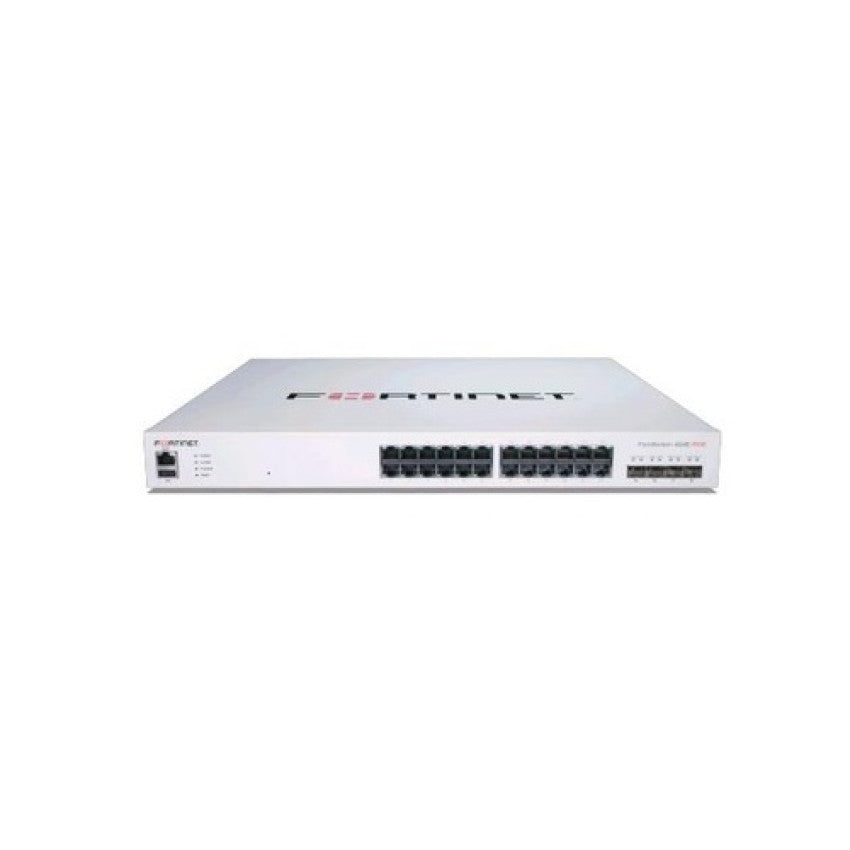

Model: FortiSwitch 424E-POE
Form Factor: 1RU
Connectivity Technology: Wired
Data Transfer Rate: 10 Gbps
Networking / Ports Qty: 30
Data Link Protocol: Gigabit Ethernet
RAM / Total Installed Size: 1 GB
Flash Memory / Installed Size: 256 MB
Networking Compliant Standards: 802.1D, 802.1w, 802.1s
Power / Device Type: Power Supply - Redundant
Media Layer Supported: Layer 2, Layer 3
Power Consumption Operational: 281.3 Watt
Max Power Consumption: 283.5 Watt
Power / Voltage Required: 100-240V AC, 50/60 Hz
MTBF: > 10 years
Features: Zero-touch deployment.
Entry level network access control at no cost.
Role and device-based access control and policy enforcement.
Power Over Ethernet (PoE) Support: Y
PoE Power Consumption: 250 W
MAC Address Table Size: 16 K
Jumbo Frame Support: Y
Remote Management Protocol: VLAN; IPv4; DHCP
Routing Protocol: OSPFv2, RIPv2, VRRP, BGP, ISIS
Authentication Method: RADIUS, 802.1X
SFP+ Ports: 4
Interfaces: RJ45;SFP+;Dedicated Management 10/100;RJ-45 Serial Console
Interfaces: RJ45;SFP+;Dedicated Management 10/100;RJ-45 Serial Console
SFP+ Ports: 4
Width: 17.3 Inch
Depth: 16.14 Inch
Height: 1.75 Inch
Weight: 5.25 Kg
Min Operating Temperature: 0 Celsius
Max Operating Temperature: 50 Celsius
Min Storage Temperature: -40 Celsius
Max Storage Temperature: 70 Celsius
RoHS: Y
COO: TAIWAN
TAA compliance: Yes

Unit of Measure

Item Weight

16.05

Ships via UPS

Y

Brand

Fortinet

Manufacturer Stock No.

FS-424E-POE
