Manufacturer

Iogear

Categories

Iogear Electronics

MPN

IOGGCS1953

Model#

GCS1953

UPC Code

881317518675

UNSPSC Code

2

Information

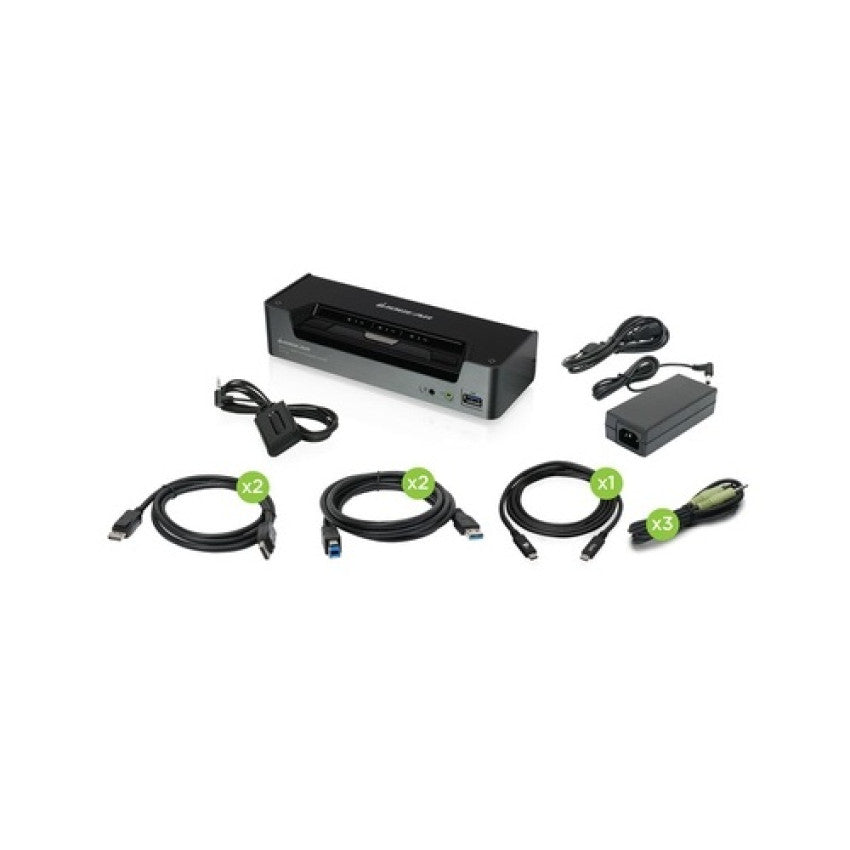

Device Type: KVM Switch
Networking / Ports Qty: 3
Connections: USB-C;DisplayPort;Power Delivery
Max Resolution (external): 4K
Width: 8.1 Inch
Depth: 3 Inch
Height: 1.7 Inch
Service & Support Type: 3 Year Warranty
Features:
-Switch and Control between 3 USB-C and DisplayPort devices/computers from one USB keyboard, mouse and 4K DisplayPort monitor and share two USB peripherals

-Power Delivery 3.0 allows for USB-C device charging up to 45W1

-Cinema 4K resolution (4096 x 2160 @60Hz)2with one monitor

-Multi Stream Transport (MST) Support, enable to expand to two DisplayPort monitors3

-2-Port USB 3.1 Gen 1 for SuperSpeed 5Gbps data transfer rate2

-DisplayPort Alternate Mode (DP Alt Mode), enable USB-C connection to carry DisplayPort signals

-Computer selection via front panel pushbutton, hotkeys, mouse4and remote port selector

-Supports HD Audio5

-DisplayPort Dual-Mode technology(DP++)6

-USB Powered

-HDCP compliant

-Firmware upgradable

-1PD3.0 Power Adapter is needed

-2For USB-C devices, resolution 4K@60Hz when using USB2.0 transfer rate, 4K@30Hz when using USB3.0 transfer rate

-3First DisplayPort monitor must have DP1.2 MST support, second DisplayPort monitor can be DP1.1, resolutions will be shared between the two monitors

-4Mouse emulation must be enabled and use with USB 3-key wheel mice

-5HD Audio through DisplayPort cannot be switched independently

-6DisplayPort signals can be converted to HDMI or DVI
Enclosure Color: Black
COO: TAIWAN

Unit of Measure

Item Weight

4.35

Ships via UPS

Y

GTIN Item

881317518675

UPC Retail

881317518675

Brand

Iogear

Manufacturer Stock No.

GCS1953
